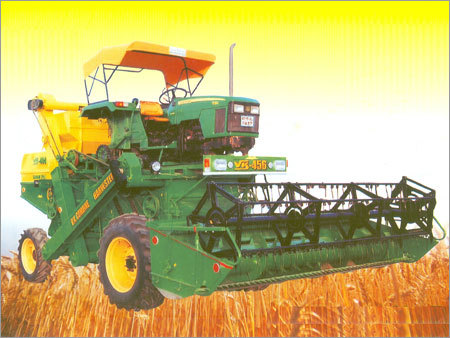

Tractor Driven Combine Harvester

Tractor Driven Combine Harvester
Tractor Driven Combine Harvester
Product Code : 04
Product Description

Tractor Driven Combine Harvester

Features

  • Useful for operation in most dry land
  • Save your time during tractor attachment you can attach/detach your tractor with in few hours
  • Harvester manufacturing experience from last 30 years.

Technical Specifications

Description

V.K 456(36)

V.K 456(46)

Width of cut

3125mm

3580mm

H.P required for all tractor

Above 50 H.P

Above 50 H.P

Height of cut



Maximum

1000mm

1000mm

Minimum

70m

70m

Grain tank capacity for paddy

7 Bags

8 Bags

Harvesting capacity per hour

1.25 Acre

1.5 Acre

No. of straw walker

4 pcs

5 pcs

Thresher width

900mm

1140mm

Drum dia

600mm

600mm

Cleaning seave size

838-1244 mm(large)

1090-1244 mm(large)

838-750 mm(small)

1090-750 mm(small)

Labour required

1 operator, 1 helper

1 operator, 1 helper

Length of combine (transport)

10300 mm

10800 mm

Width of combine(transport)

2450mm

2600mm

Height of combine

3400mm

3400mm

Width(working)

3545mm

4000mm

Length(working)

7700mm

7700mm

Approx weight with out tractor

4100 kg. Approx

4500 kg. Approx
